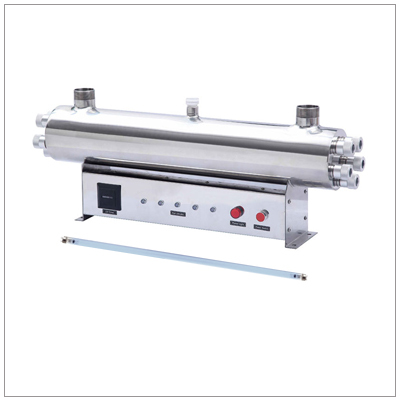

Economy Stainless Steel UV-C Sterilizer 24GPM-96GPM
Economy Stainless Steel UV-C Sterilizer 24GPM-96GPM
- Detail
- Parameters
Economy Stainless Steel UV-C Sterilizer 24GPM-96GPM
Description
1.VoltageAvailable
100 ~ 120V /220 ~ 240V
50/60Hz
2.UVSterilizer Power Plug Type
Europe 3Pin/America 3Pin /UK 3Pin /Australia3Pin
2.Max. Working Pressure: 85-125 Ps
3.Chamber/Housing:Stainless Steel 304/316L
4.UV-Lamp: Chinese Brand/ Philips/Light Sources
Applications | ||
· Reverse Osmosis Pretreatment · Chemical & Petrochemical · Dairy · Drinking Water · Food and Beverage · Liquid Desalination · Electronics
| · Fuel Material Extraction · Pharmaceuticals & Biotechnology · Pulp & Paper · Wastewater Reuse · Recycled Water · Industrial Water Treatment
| |
Features
1-High quality quartz lamp and sleeve maintain highoutput of UV
2-Quick and simple installation makes customer feel good
3-Inside electrolytic Polished stainless steel reactorchambers for maximum UV reflection
4-Easy lamp replacement and maintenance
Model
Model | Specification | GPM | Inlet/outlet | Pressure |
HFUV-24G | 55*2 Watts | 24 | 1.0"NPT/BSP | 125 psi |
HFUV-36G | 55*3 Watts | 36 | 1.5”NPT/BSP | 125 psi |
HFUV-48G | 55*4 Watts | 48 | 1.5”NPT/BSP | 125 PSI |
HFUV-72G | 55*5 Watts | 72 | 2.0”NPT/BSP | 125 PSI |
HFUV-84G | 55*6 Watts | 84 | 2.0”NPT/BSP | 125 PSI |
HFUV-96G | 55*7 Watts | 96 | 3.0”NPT/BSP | 125 PSI |
More Options or Customized UV , Please Send Inquiry To HangzhouHuman Fluid Filtration Equipment Co.,LTD
